Description

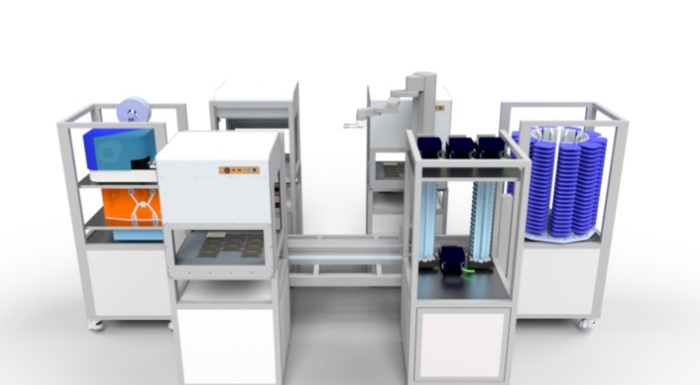

Lab Automation’s most affordable, customizable, repurposable, scalable way to add plate handling robot systems to your instrumentation. Scale your lab faster easier and for a smaller investment.

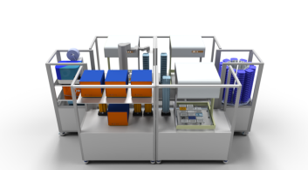

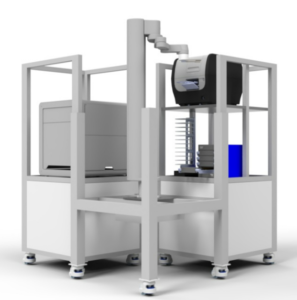

Fixed Robot Option

Includes a base for your mobile instrument pods. This base option uses Tek-Matic’s Terminal Technology providing precision mechanical docking for up to (4) Mobile Device Module instrument carts (one per side). Terminals electrify your robot base giving you electric power as well as ethernet communcations connectivity to each of your mobile instrument pods.

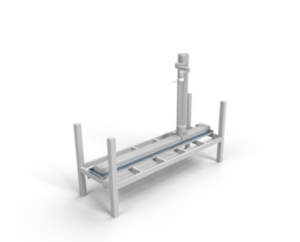

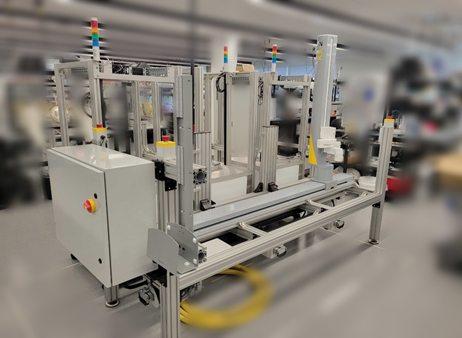

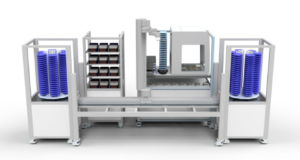

Rail Robot Option

Includes a base for your KX-2 robot and horizontal rail. This base option uses Tek-Matic’s Terminal Technology providing precision mechanical docking for multiple Mobile Device Module instrument carts on all sides. Terminals electrify your robot base giving you electric power as well as ethernet communications connectivity to each of your MDM instrument carts. Multiple robot bases can be added configuration in your lab to layout virtually any configuration in your lab.

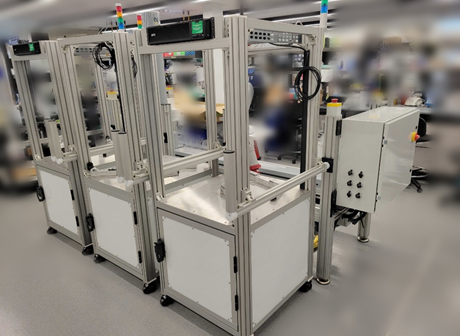

MDM (Mobile Device Module)

Tek-Matic’s MDM carts are an afforable way to mount multiple lab instruments in one portable dockable giving you flexibility and saving valuable lab space.

Features

• Standard sizes include: 800, 1000, 2000 mm width by 800 mm depth (custom sizes available)

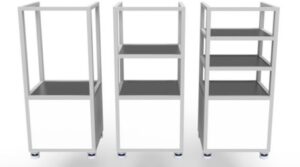

• Each shelf is is adjustable height with adjustable rails
• Casters with positive position mounting feet
• Latch mechanism securely and precisely locates carts to robot base/terminal
• Cables are routed elegantly internally
• Includes electrical connections for power and ethernet
• Onboard electrical 120V power connections, 24 V power supply and breakout module
• Light stack indicators for MDM status
• Ergonomical handle with easy detach lever
• Lower portion of cart for PC’s and service wiring

Terminals

Tek-Matic’s Terminal docking system is the unique electro mechanical interface between our affordable robot / robot rail bases & MDM lab carts. Terminals can be added to any and all sides of your robot base providing power and communications to all of your dockable MDM carts and its instruments.

Features

• Mounts to both fixed robot and robot rail bases
• Terminals can be mounted on each side of a fixed base (for (4) MDM carts)
• Terminals can be mounted on each side of a rail base (for (6) MDM carts)
• Robot can access all instruments on every MDM cart
• All comms and power wiring cleanly concealed in wireway underneath
• Each gate equipped with its own power and communication for quick easy connection
• Latch mechanism securely and precisely locates carts to robot base
