Description

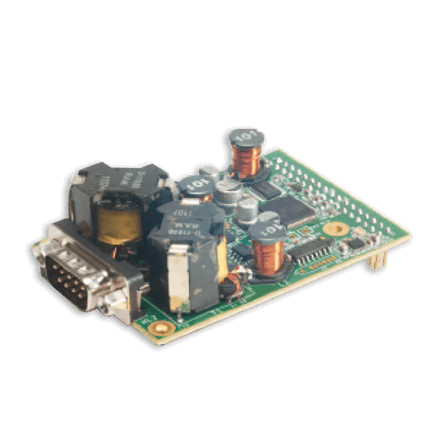

XCD will have an OEM specific, motherboard for connecting to the motor, position sensor, communication and power. The XCD for ST/HR motors is provided as a single axis board which can drive the ST, HR1, HR2, or HR4motor. The XCD can operate in the ‘AB5’ mode with brake on/off, or in the more traditional AB1A mode. The XCD for ST/HR motors accepts a differential quadrature encoder signal and is programmed via an IIC interface and the Nano-Commander user software.

Application Recommendations:
