Description

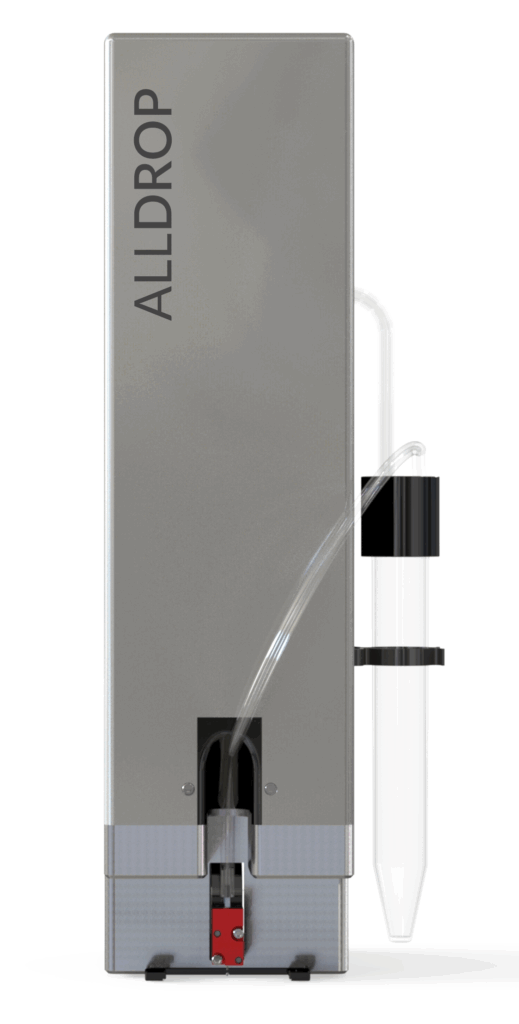

The AllDrop Dispenser head combines BioFluidx’s patented PipeJet nanoliter dispensing technology with their revolutionary AllDrop autocalibration imaging system. Not only are droplets calibrated automatically, they are also imaged and tracked for full 100% in-process control and traceability. You will always know that your dispensing system produced the accurate dropelts you desire with AllDrop Dispenser. Your supply liquids are stored in the unit’s built in reservoir.
Integrated PipeJet P9 NanoDispenser
- Non-contact low volume dispenser
- From 2* to 70* nl per droplet
- Low-cost consumable dispense element
* for pure water
- Cross contamination free | no washing due to consumable liquid touching elements
- Driven by BioFluidix CX 200 controller
Integrated PipeJet P9 NanoDispenser
Peristaltic pump, pressure sensor, and electronic PE20 are used to control system pressure conditions. It ensures long-term stability, performance adaption for different liquid types, and to exceed physical flowrate limit.
Integrated AllDrop System
- Droplet volume calibration
- In-process parameter regulation
- 100% documentation and traceability
- Droplet volume repeatability/ stability
- Highest droplet volume trueness
- Application of difficult liquid types
System parameter adjustment
- System pressure
- PipeJet piston stroke
- PipeJet piston stroke velocity
- Trigger delay
- Parameter storage for traceability and documentation
