Description
Incremental Encoders
Speed measuring on rotating axes with incremental encoders
Incremental encoders deliver a certain number of pulses per shaft revolution. The speed of a movement is determined by measuring the period or counting the pulses per time unit.
Unique diversity of variants
- Dimensions from Ø 24 mm to Ø 100 mm
- Optical and magnetic scanning
- Working temperature range -40 °C to +105 °C
- Resolution up to 36,000 ppr
- HTL, TTL, and SinCos output signal

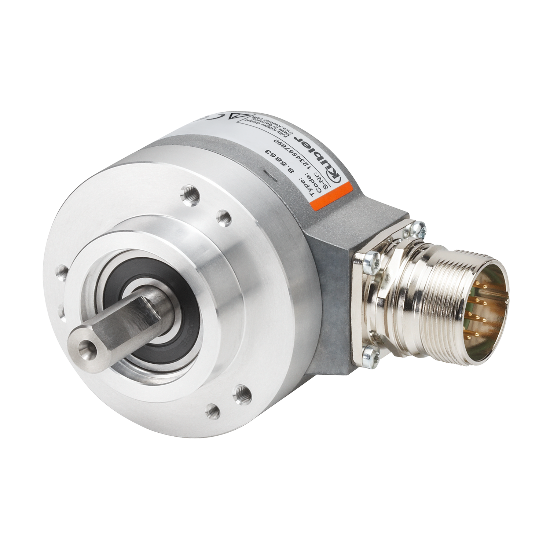

Absolute Encoders Singleturn
Position acquisition over 360° with singleturn absolute encoders
With absolute singleturn encoders, a coded position value is assigned to each angular position in order to record the absolute position. Even after the encoder has been disconnected from the power supply, the unambiguous position is still available.
Absolute position over 360°
- Resolution up to 21 bits
- Suppl. incremental track for speed measuring
- Optical and magnetic scanning
- Dimensions from Ø 24 mm to Ø 70 mm
- Working temperature range from -40 °C to +90 °C
- Analog, SSI, BiSS, fieldbus, Industrial Ethernet
Absolute Encoders Multiturn
Position detection over multiple turns with multiturn encoders
With absolute multiturn encoders, up to 24 bits of unique angular positions are output per revolution. The number of revolutions is also recorded. The unambiguous position is available even after the encoder has been disconnected from the power supply.
Absolute position over several turns
- Number of revolutions up to 24 bit multiturn
- Additional incremental track for speed measurement
- Optical and magnetic sensing
- Sizes from Ø 36 mm to Ø 70 mm
- Working temperature range from -40 °C to +90 °C
- Analog, SSI, BiSS, fieldbus, Industrial Ethernet
Encoders by Dimension
If space is an important factor, you can find the right encoder with us. They range from miniature to maxi encoders.
Nearly limitless possibilities await you when configuring your encoder. There are also a variety of mechanical and electrical ordering options. The list below displays the range of sizes that we are capable of offering.

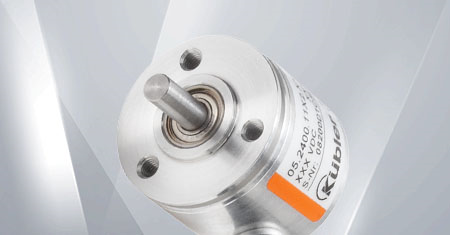

Ø 24 mm miniature encoder
- Optical and magnetic
- Resolution up to 1024 ppr
- Shaft or hollow shaft up to 6 mm
- Flexible solutions
Ø 36 mm to Ø 40 mm compact encoder
- Optical
- Resolution up to 3600 ppr
- Shaft or hollow shaft up to 8 mm
- Also with plastic housing

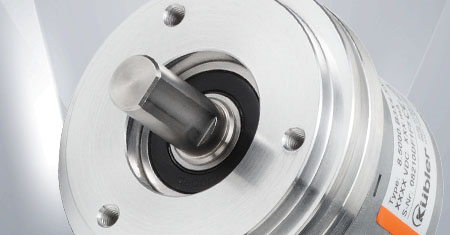

Ø 50 mm to Ø 70 mm standard encoder
- Optical
- Resolution up to 36000 ppr
- Shaft or hollow shaft up to 15 mm
- Special approvals
Hollow shaft maxi encoder up to Ø 42 mm
- Optical
- Resolution up to 5000 ppr
- Also available in extremely robust versions
Encoders for Special Requirements
Are you looking for specific technical features or do you have special sensor requirements? With us you’ll find the perfect encoder for your machines, systems, or motors. We are also happy to accept individual challenges. Please contact us at 815-282-1775.

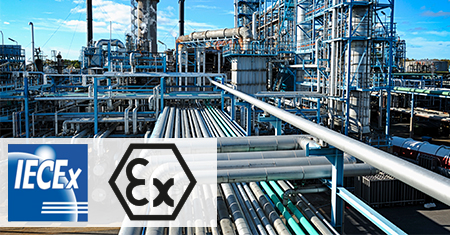

Explosion protection
- ATEX / IECEx certified
- Encoders for zones 1/21
- Shaft and hollow shaft versions
- Also for functional safety
Corrosion Resistant
- Incremental encoders with surface protection
- Stainless steel V2A or V4A
- Shaft and hollow shaft variants

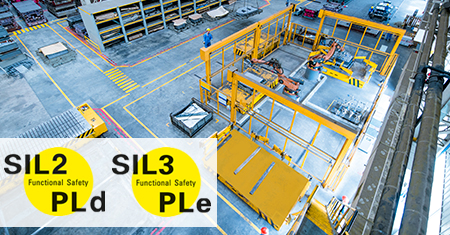

Functional safety
- For SIL2/PLd or SIL3/PLe
- TÜV-certified encoders
- Shaft and hollow shaft versions
Heavy duty applications
- Extremely robust encoders with bearing insulation
- Highly shock and vibration resistant
IO-Link Communication
- Magnetic Scanning
- 14 Bit Singleturn
- Shaft and hollow shaft variants
